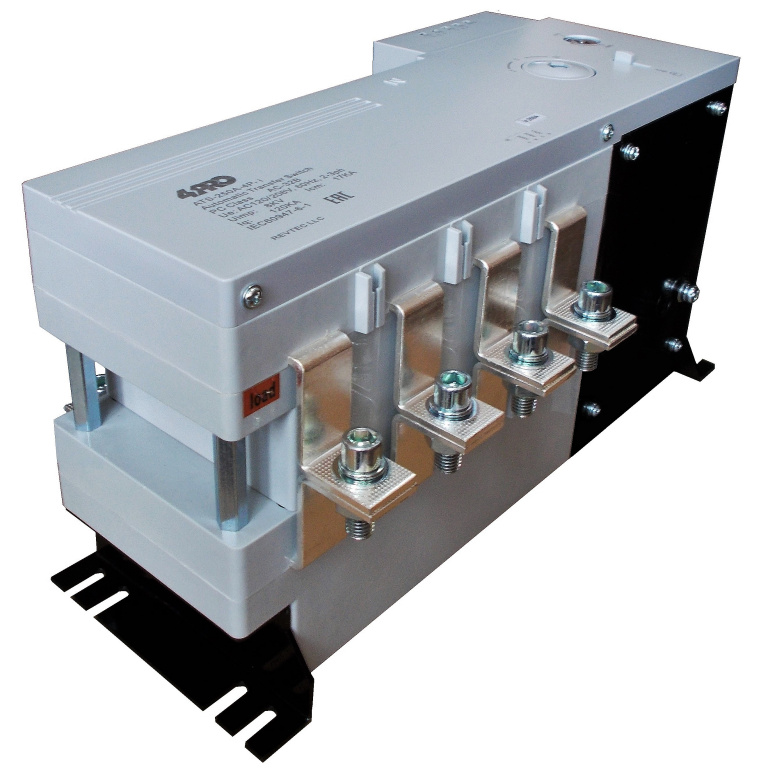

4PRO ATS-250A-4P-iRC Automatic Transfer Changeover Switch, 250A, 120/208V, 50Hz, 2-3 phase

Datakom 4PRO ATS-250A-4P-iRC Automatic Transfer Changeover Switch, 250A, 120/208V, 50Hz, 2-3 phase
Datakom 4PRO ATS-250A-4P-iRC Automatic Transfer Changeover Switch, 250A, 120/208V, 50Hz, 2-3 phase
Datakom 4PRO ATS-250A-4P-iRC Automatic Transfer Changeover Switch, 250A, 120/208V, 50Hz, 2-3 phase
Datakom 4PRO ATS-250A-4P-iRC Automatic Transfer Changeover Switch, 250A, 120/208V, 50Hz, 2-3 phase
Datakom 4PRO ATS-250A-4P-iRC Automatic Transfer Changeover Switch, 250A, 120/208V, 50Hz, 2-3 phase
(0)
$423.00
pcs.

The ATS-250A-4P-i changeover switch is an microprocessor based intellectual device designed to transfer loads automatically and manually from one power source to another in a wide variety of 1-3 phase applications.
The unit monitors 3-phase normal and reserve source voltages, sends remote start command to the generating set and performs changeover switching between those 2 sources connecting the load circuits to a power source having voltages within preset limits.

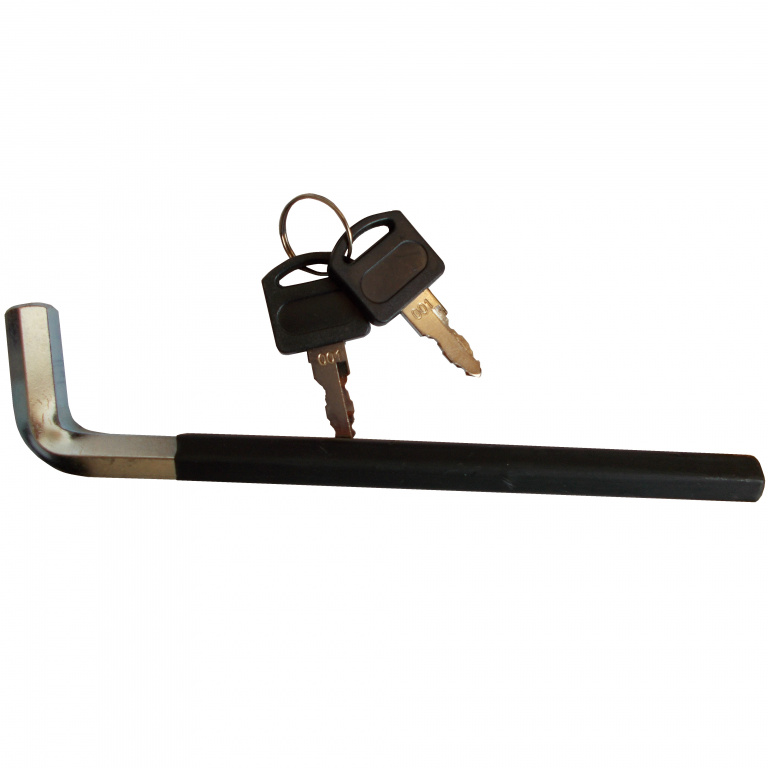

Device has a manual load switch lever, a manual/auto mode switch and a mechanical locking.

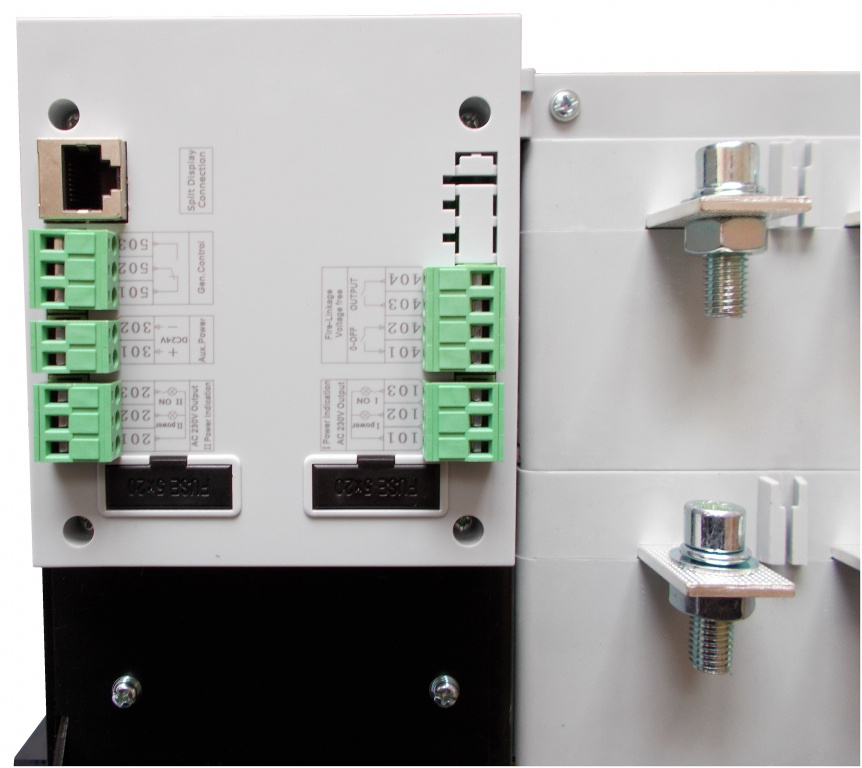

Inputs and outputs: fire linkage control, generator remote start, external indicators.
The front panel leds provide information about mains and generator power availability as well as a current switch positions.

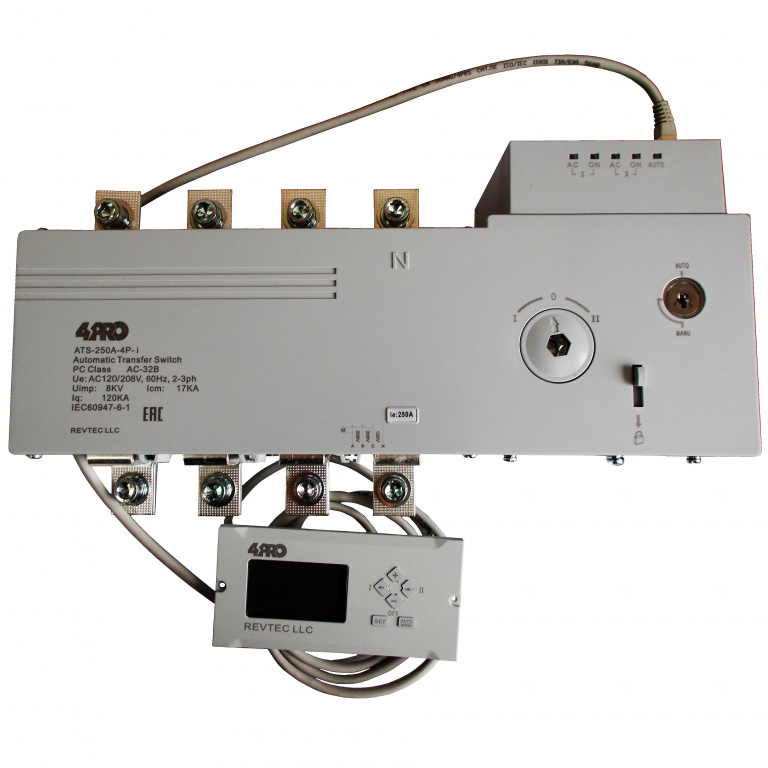

External display shows phase voltages and can be placed in a distance of 1-3 meters from the device via standard Ethernet cable.
Power source voltage limits, transfer-, start- and stop delays and transfer modes are front panel configurable.
Note: The delays apply only  in case if the device is connected to 24VDC auxiliary power supply.

Features
• 3 working positions: main power ON - backup power OFF; main power OFF - backup power ON; main and backup power OFF;
• double complex contacts/ horizontal pulling mechanism/micro motor energy pre-storage and microcomputer control technology;
• reliable mechanical interlock and electric interlock;
• "Zero Position" technology. Device can be set to Zero Position under emergency situations with two way power supply cut off meeting the fire linkage requirements;
• singleness motor drive providing smooth, reliable, low noise operation;
• driving motor energized only during switching operations with outstanding energy saving;
• mechanical interlock, making sure that the Normal power and Reserve Power sources work without interference;
• distinct ON and OFF position and activity indicators;
• high security and reliability with working life more than 8000 times;
• electromechanical integration design with accurate changeover adopting an advanced logical control technology and high anti-interference ability;

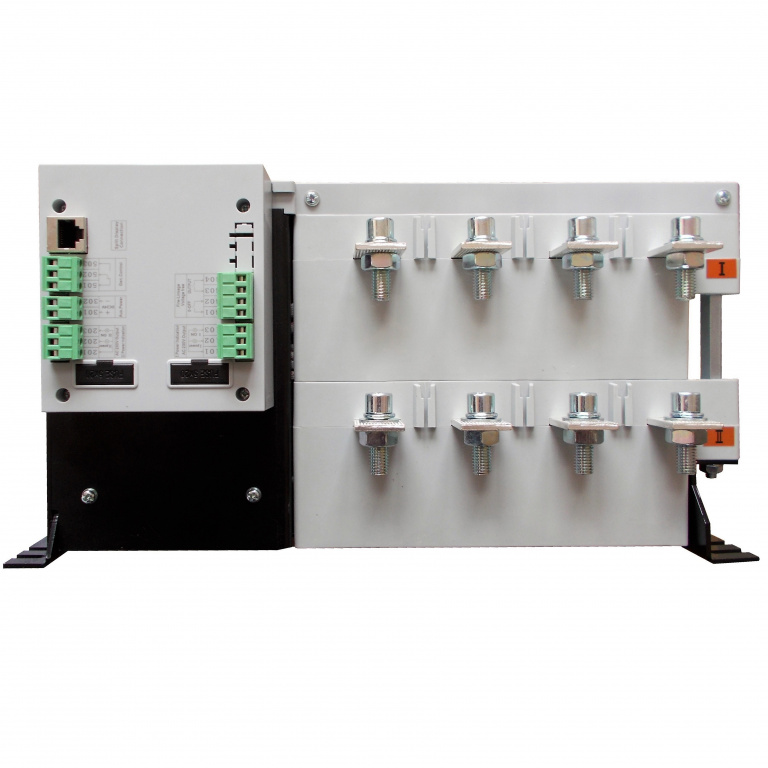

• easy installation using control circuit plug type terminal connections.
