The New D-300 MK2 Genset Controller

The New D-300 MK2 Genset Controller

11.05.2020

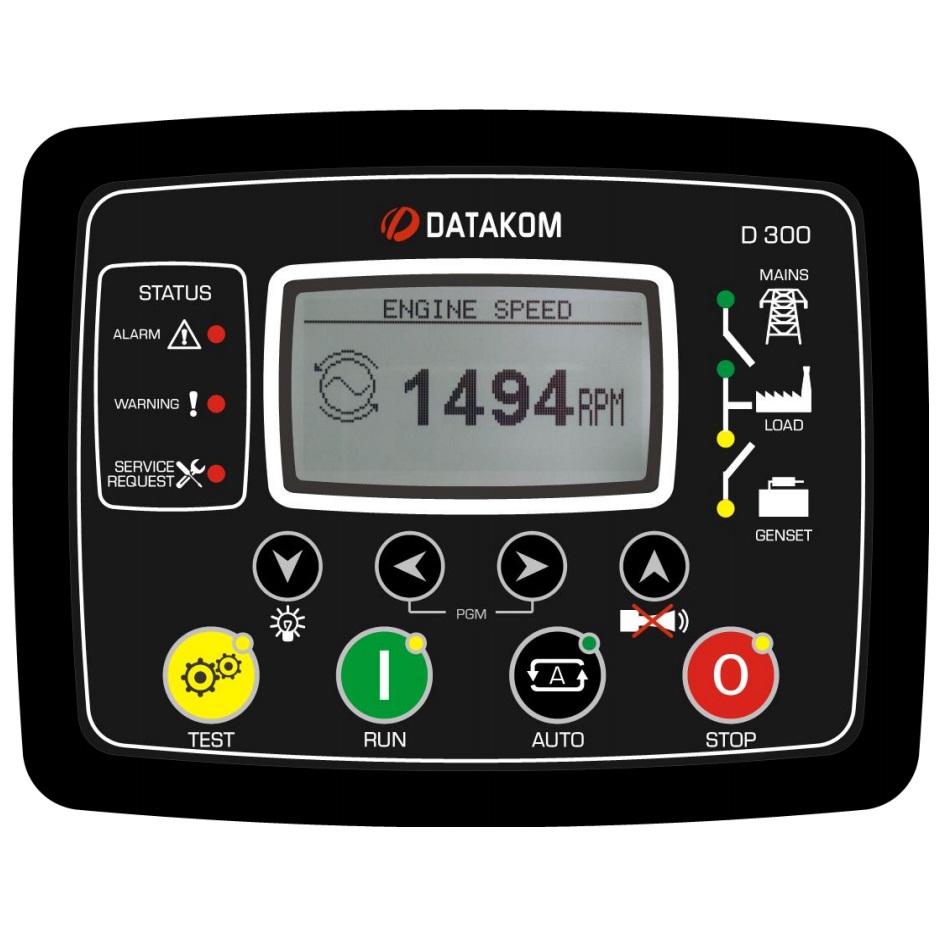

The New D-300 MK2 Genset Controller The DATAKOM D-300-MK2 is a cost effective, modern technology genset controller ready for internet monitoring.
Its main advantages are multifunctionality, support for multiple topologies, harmonic analysis and detailed power measurements.
Software features are complete with easy firmware upgrade through USB port.
The Windows based PC software allows monitoring and programming through USB, RS-232 and GPRS.
The Rainbow Scada web service allows monitoring and control of an unlimited number of gensets from a single central location.

Functionalities:
• AMF unit
• ATS unit
• Remote start controller
• Manual start controller
• Engine controller
• Remote display panel

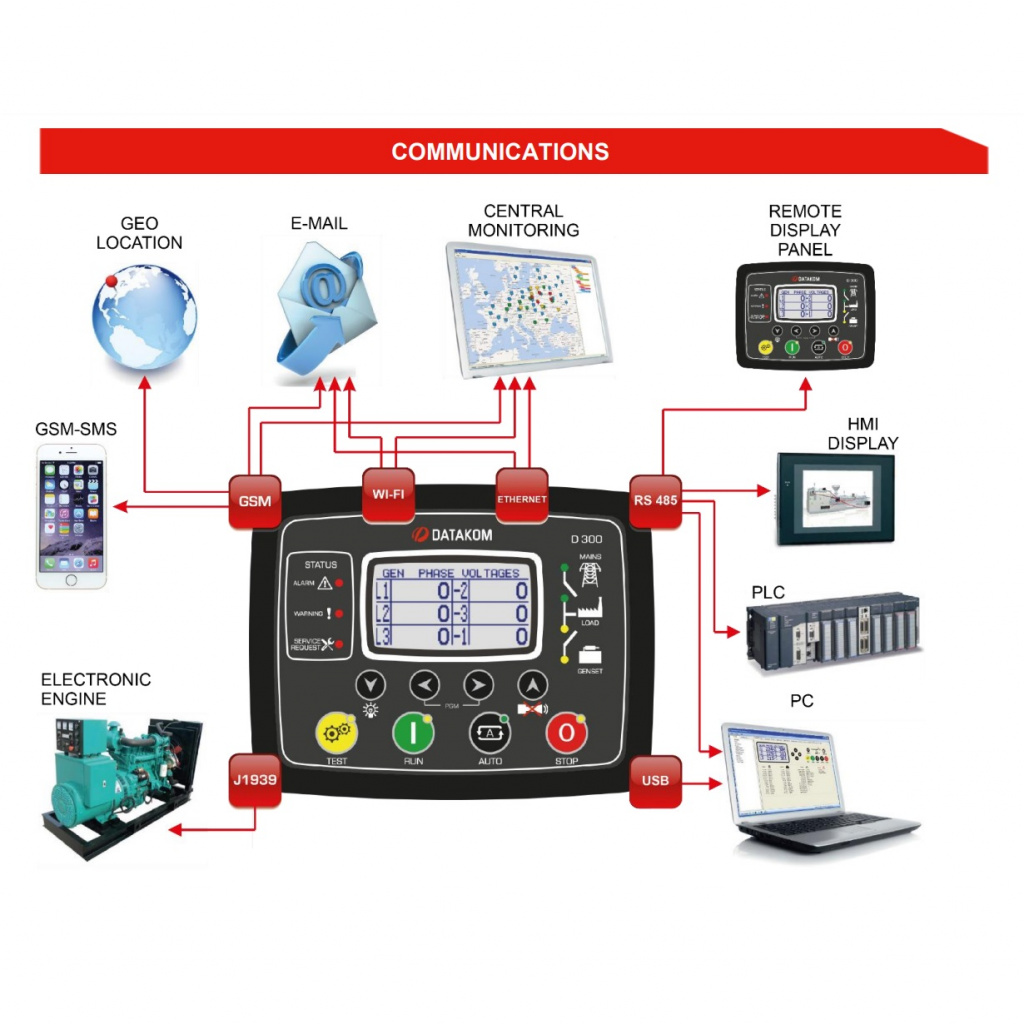

Communications:
• 4-band GPRS modem (optional)
• USB Device
• RS-232 (2400-57600baud)
• J1939-CANBUS
• Geo-locating through GSM
• GPS support (RS-232)
• Internet Central Monitoring
• SMS message sending
• E-mail sending
• Free PC software: Rainbow Plus
• Modbus RTU

Features:
• Diesel and gas genset support
• 400Hz operation support
• 400 event logs, full snapshot
• All parameters front panel editable
• 3 level configuration password
• 128x64 graphical LCD display
• Downloadable languages
• Waveform display of V & I
• Harmonic analysis of V & I
• 16Amp MCB & GCB outputs
• 8 configurable digital inputs
• 6 configurable digital outputs
• 3 configurable analog inputs
• Both CANBUS-J1939 & MPU
• 3 configurable service alarms
• Multiple automatic exerciser
• Weekly operation schedule
• Dual mutual standby with equal aging of gensets
• Manual “speed fine adjust” on selected ECUs
• Automatic fuel pump control
• Disable protections feature
• Excess power protection
• Reverse power protection
• Overload IDMT protection
• Load shedding, dummy load
• Multiple load management
• Current unbalance protection
• Voltage unbalance protection
• Fuel filling & fuel theft alarms
• Battery back-up real time clock
• Idle speed control
• Battery charge run enabled
• Combat mode support
• Multiple nominal conditions
• Contactor & MCB drive
• 4 quadrant genset power counters
• Mains power counters
• Fuel filling counter
• Fuel consumption counter
• Modem diagnostics display
• Configurable through USB, RS-232 and GPRS
• Free configuration program
• Allows SMS controls
• Ready for central monitoring
• Mobile genset support
• Automatic GSM geo-location
• GPS connectivity (RS232)
• Easy USB firmware upgrade
• IP65 rating with optional gasket

TECHNICAL SPECIFICATIONS:
DC Supply Range: 9.0 to 33.0 V-DC.
DC power consumption:
- 250 mA-DC typical @12V-DC
- 125 mA-DC typical @24V-DC
- 500 mA-DC max. @12V-DC
- 250 mA-DC max. @24V-DC
Alternator voltage: 0 to 330 V-AC (Ph-N), 0 to 570V Ph-Ph
Alternator frequency: 0-500 Hz.
Mains voltage: 0 to 330 V-AC (Ph-N) , 0 to 570V Ph-Ph
Mains frequency: 0-500 Hz.
Current Inputs: from current transformers. ../5A.
CT Range: 5/5A to 5000/5A
VT Range: 0.1/1 to 6500 / 1
kW Range: 0.1kW to 65000 kW
Accuracy:
- Voltage: 0.5%+1digit
- Current: 0.5%+1 digit
- Frequency: 0.5%+1 digit
- Power(kW,kVAr): 1.0%+2digit
- Power factor: 0.5 %+1digit
Digital inputs: input voltage 0 to 36 V-DC.
Analog input range: 0-5000 ohms.
Mains and genset contactor outputs: 16Amps@250V
DC Outputs: Protected mosfet semiconductor outputs, rated 1Amp@28V-DC
Cranking dropouts: survives 0V for 100ms.
Magnetic pickup voltage: 0.5 to 30V-RMS.
Magnetic pickup frequency: 10 to 10000 Hz.
Charge Alternator Excitation: 100mA @12VDC, 200mA @24VDC
USB Device: USB 2.0 Full speed
RS-232 Port: selectable baud rate
Operating temperature: -20°C to 70°C (-4 to +158 °F).
Storage temperature: -40°C to 80°C (-40 to +176°F).
Maximum humidity: 95% non-condensing.
IP Protection: IP54 from front panel, IP30 from the rear.
Dimensions: 172 x 134 x 47mm (WxHxD)
Panel Cut-out Dimensions: 151 x 111 mm minimum.
Weight: 300 g (approx.)
Case Material: High Temperature, non-flammable, ROHS compliant ABS/PC
Mounting: Flush mounted with rear retaining plastic brackets.
EU Directives Conformity:
-2006/95/EC (low voltage)
-2004/108/EC (electro-magnetic compatibility)
Norms of reference:
- EN 61010 (safety requirements)
- EN 61326 (EMC requirements)
UL Compatibility: UL 6200, Controls for Stationary Engine Driven Assemblies (Certificate Number - 20140725-E314374)
CSA Compatibility: CAN/CSA C22.2 No. 14-2005 – Industrial Control Equipment

DATAKOM D-300-MK2 Multifunctional Generator Controller
