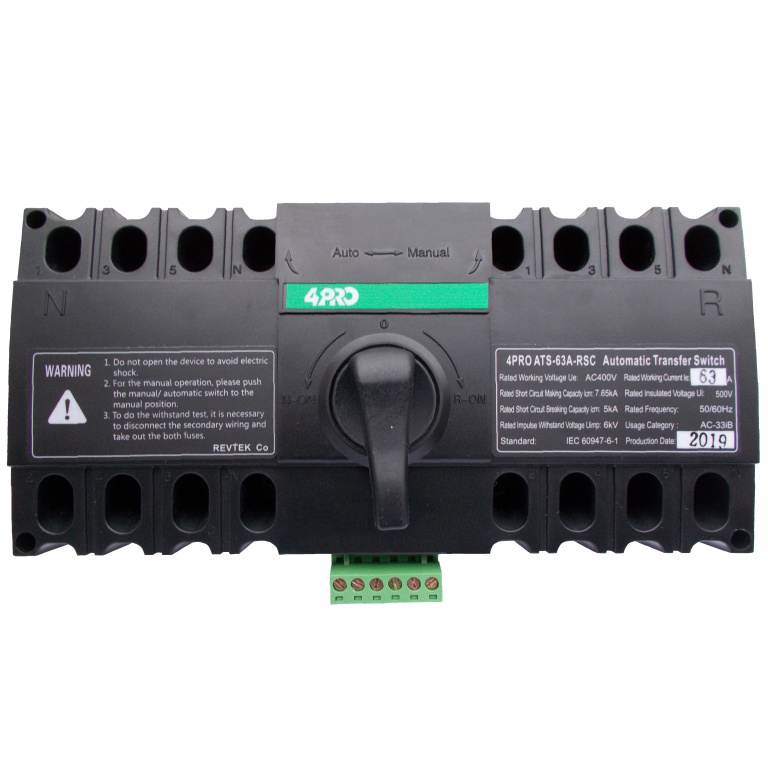

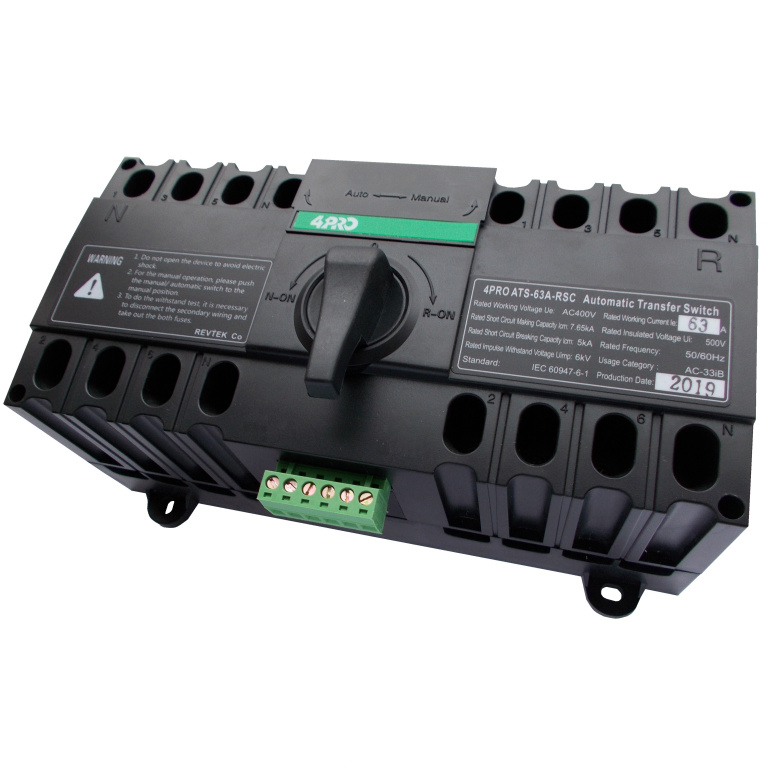

4PRO ATS-63A-4P-RSC 230V Automatic Changeover Switch 50-60Hz, 1-3 phase, 4 pol., 3 pos.,

Datakom 4PRO ATS-63A-4P-RSC 230V Automatic Changeover Switch 50-60Hz, 1-3 phase, 4 pol., 3 pos.,
Datakom 4PRO ATS-63A-4P-RSC 230V Automatic Changeover Switch 50-60Hz, 1-3 phase, 4 pol., 3 pos.,
Datakom 4PRO ATS-63A-4P-RSC 230V Automatic Changeover Switch 50-60Hz, 1-3 phase, 4 pol., 3 pos.,
Datakom 4PRO ATS-63A-4P-RSC 230V Automatic Changeover Switch 50-60Hz, 1-3 phase, 4 pol., 3 pos.,
(0)
$82.00
pcs.

▼ ATS-63A-4P-RSC User Manual

The ATS-63A-RSC changeover switch is designed to automatically transfer load circuits from main power source to reserve source in a wide variety of 1-3 phase applications.

FEATURES

- 1-3 phase 4 pole operation;

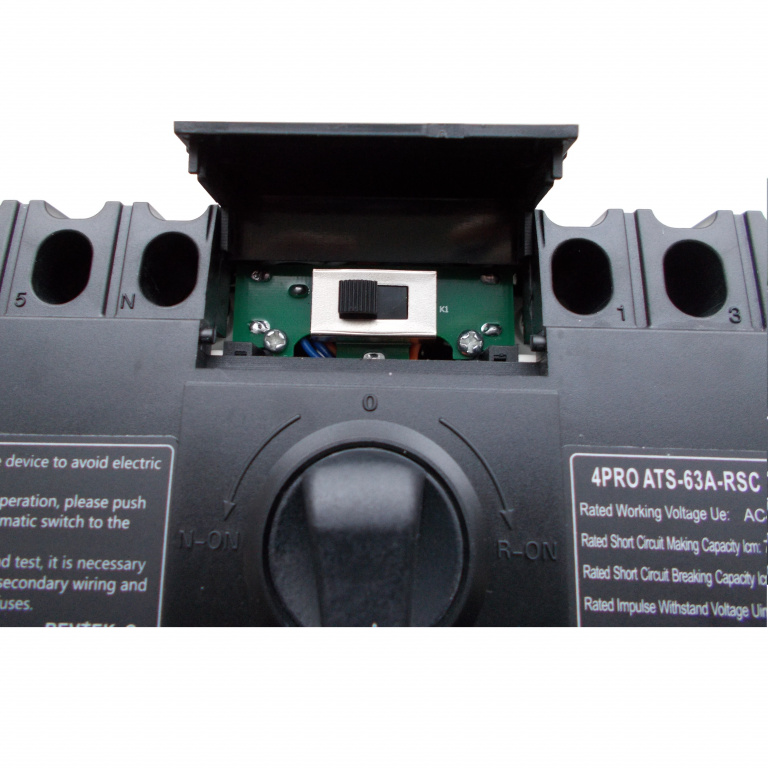

- Auto and Manual/Remote mode switch;
- Electric motor gear activated switching;
- 3 position switch handle(”I”-”0”-”II”);

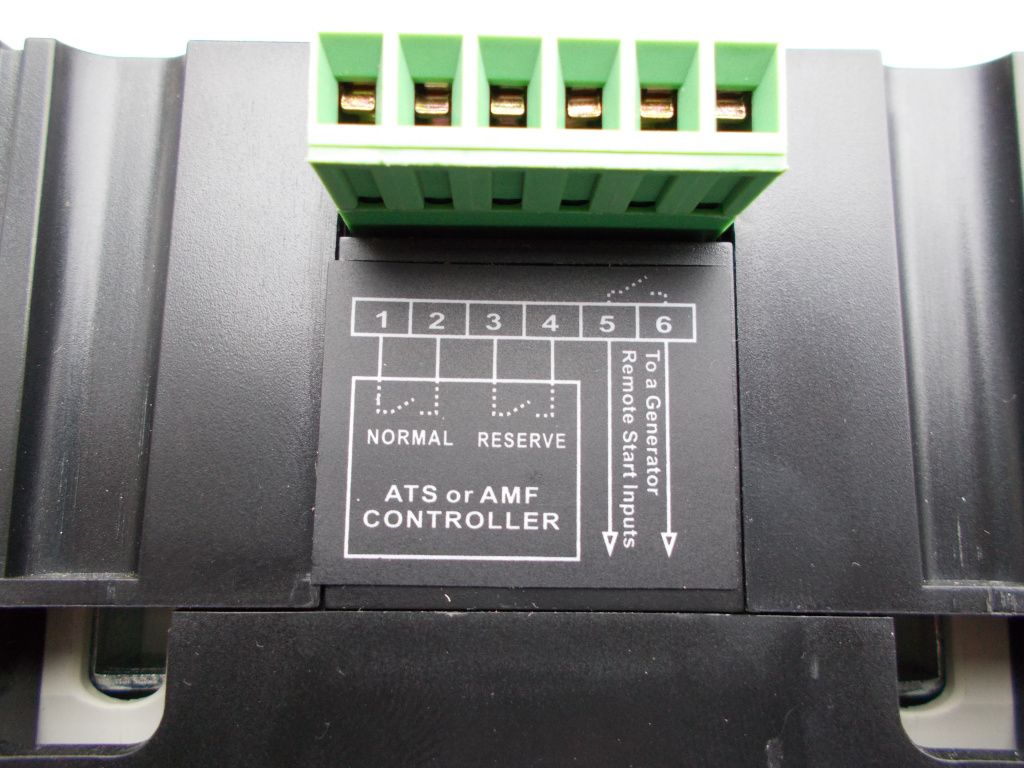

- Generator start/stop remote control outputs;
- External ATS/AMF controller remote control inputs;
- Built-in mechanical and electrical interlocking;
- High reliability and low power consumption due to fixed positions of the change-over mechanism energized during switching process only;

INPUTS AND OUTPUTS

- Normal source inputs: R, S, T, N;
- Reserve source inputs: R, S, T, N;
- Load cirquit outputs: R, S, T, N;
- Generator start/stop remote control outputs;
- External ATS/AMF controller remote control inputs.

TECHNICAL SPECIFICATIONS
- Rated Operating Voltage:
    - 230/400V(2-3 phase);
    - 230V (single phase);
    - 120/208V(3 phase);
    - 120/240V (2 phase).
- Voltage frequency: 50/60Hz.
- Switching poles: 4
- Rated operating current: up to 63А per device pole;
- Phase current: up to 63А
- Control voltage: 175-265VAC
- Working temperature range: от -5'C до +45'C
- Humidity: up to 50%
- Power loss: not more than 5W;
- Switching time: 3-4 sec
- Category: CB
- Weight: 1.4 kg
