DATAKOM DKG-152 Remote start generator control panel

DATAKOM DKG-152 Remote start generator control panel.

12.06.2015

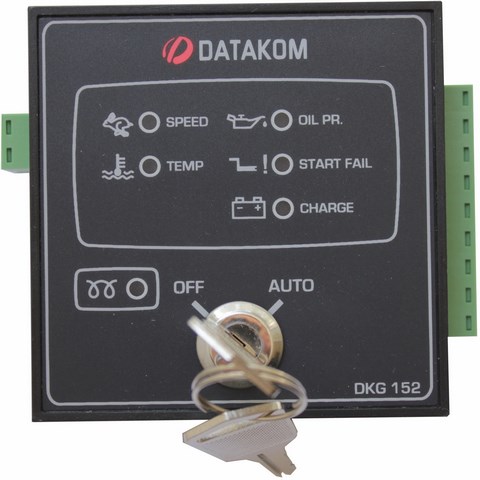

DATAKOM DKG-152 Remote start generator control panel. The DATAKOM model DKG-152 is a low cost, microprocessor controlled unit designed to start and stop the genset automatically on request of an external Remote Start signal. It has high power relay outputs enabling it to interface directly with diesel gensets.
When the engine is running, the unit monitors fault conditions and shuts-down the engine automatically in the occurrence of an alarm. In the OFF position, the DC supply is removed from the module, thus remote start operation is disabled and zero power consumption is achieved.
The occurrence of below fault conditions will cause the engine to be stopped immediately: overspeed, underspeed, high engine temperature, low of pressure.
The unit is able to operate in both 50 and 60 Hz systems. The selection is made with a jumper switch. The unit uses high current two part connectors for easy replacement
