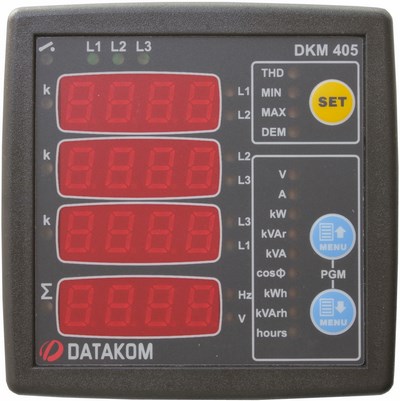

DATAKOM DKM-405 network analyser with I/O, 75-150V power supply version, 96x96mm

DATAKOM DKM-405 network analyser with I/O, 75-150V power supply version, 96x96mm

17.08.2015

DATAKOM DKM-405 network analyser with I/O, 75-150V power supply version, 96x96mm The DKM-405 is a low cost precision instrument designed to display various AC parameters in a 3-phase distribution panel. This version is supposed to use in 120/208V networks. The harmonic analysis is available for up to 31 harmonics. THD values of both voltage and current inputs are available. The optional digital input accepts both AC and DC signals and has programmable functions. The optional relay output is programmable. Relay function is selected through a list. The unit fits into a standard 92x92mm panel opening.
