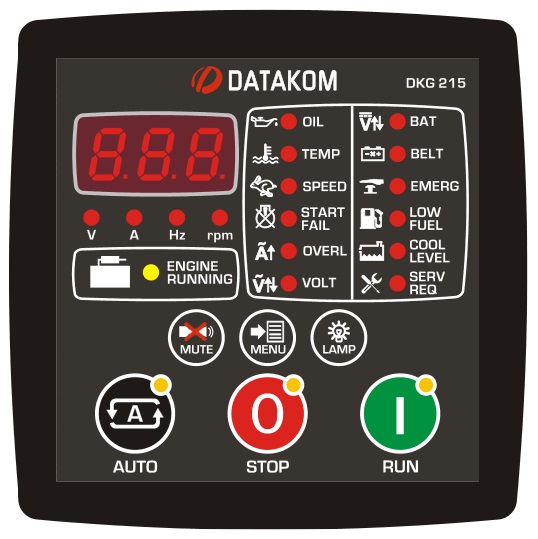

DATAKOM DKG-215 Manual and Remote Start Controller

The DKG-215 is a comprehensivegenerator control unit designed to start and stop the generating set both manually and remotely. The manual control is made using the pushbuttons on the front panel. The remote control is made via the REMOTE START input signal.

The unitis designed in a zero power consumption at reststructureand draws zero current in off mode.

The RUN, STOP and AUTO pushbuttons select the operating mode. Other buttons select the display parameter scroll, alarm mute and lamp test functions.

The unit has 3 different operation modes:
- power off (no current drain from battery)
- power on (genset stopped)
- genset running

Each depression of the RUN button causes the unit to switch to the next operation mode listed above. Each depression of the STOP button causes a return to the previous operation mode.
If AUTO mode is selectedi the REMOTE START signal causes the unit to switch between the first and the last operation modes.
In RUN position, DKG-215 controls the automatic starting of the generating set . Once the generator is running, it  monitors internal protections and external fault inputs. If a fault condition occurs, the unit shuts down the engine automatically and indicates the failure source with the corresponding led lamp.
The DKG-215 provides a comprehensive set of digitally adjustable timers, threshold levels, input and output configurations and operating sequences. The unauthorized access to program parameters is prevented by the program lock input. All programs may be modified via front panel pushbuttons, and do not require an external unit.
The fault conditions are considered in 2 categories as Warnings and Alarms. Measured values have separate programmable limits for warning and alarm conditions.
The service request indicator lamp turns on at the expiration of either engine hours or time limits.
The unit is designed for front panel mounting.
Connections are made with 2 part plug and socket connectors.

FEATURES:
• Zero power consumption at rest
• Manual control enabled
• Engine control mode
• 96x96mm standard panel dimensions
• Configurable analogue inputs: 3
• Configurable digital inputs: 5
• Protected semiconductor outputs: 5
• Magnetic pickup input
• Genset voltage inputs: 3 phase
• Genset current inputs: 1 phase
• Genset active power and pf measurements
• Front panel programmable
• Logic level serial port
• Remote monitoring and configuration enabled
