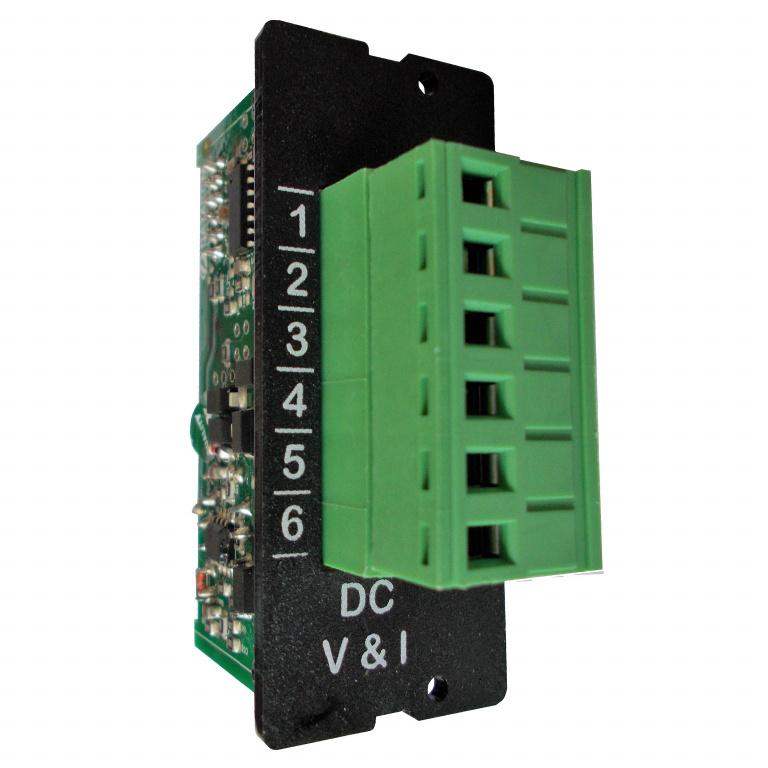

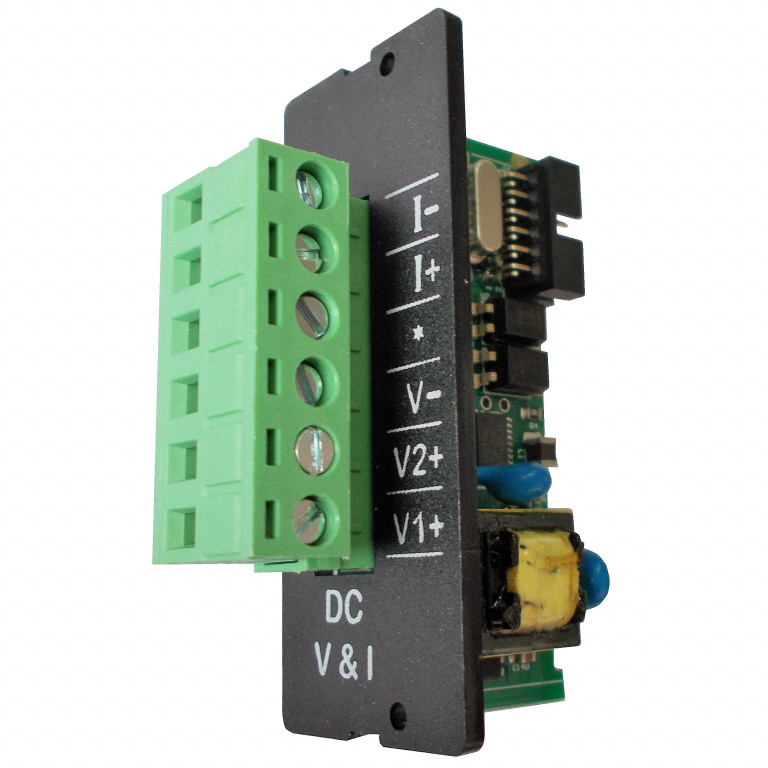

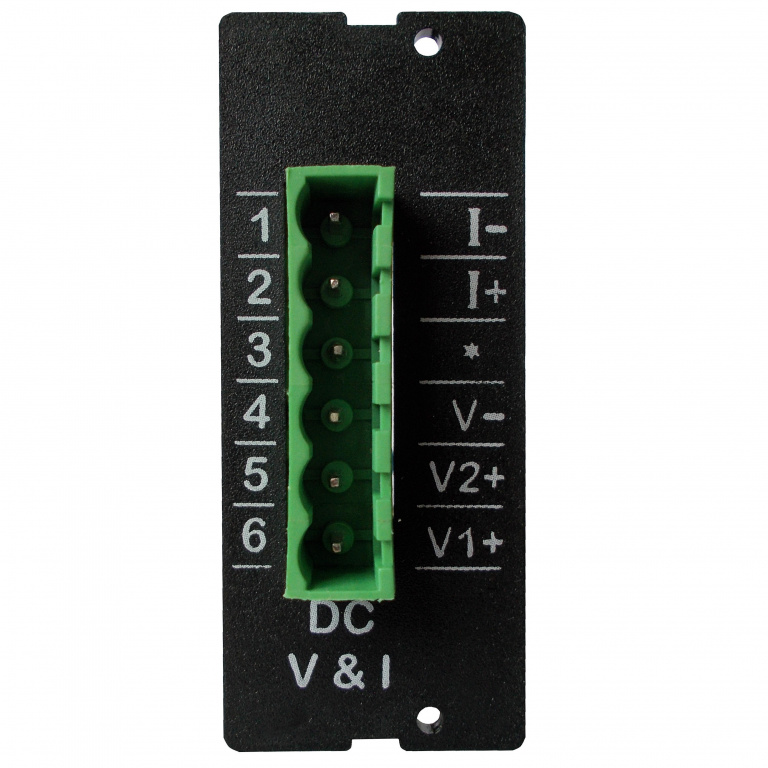

DATAKOM DC Current/Voltage Module D-500/700 –MK2

Datakom DATAKOM DC Current/Voltage Module D-500/700 –MK2
Datakom DATAKOM DC Current/Voltage Module D-500/700 –MK2
Datakom DATAKOM DC Current/Voltage Module D-500/700 –MK2
(0)
$83.00
pcs.

Voltage inputs:

Measurement method:     Isolated DC voltage measurement
Sampling rate:     100K s/s
Input voltage range:    0 to 70 VDC
Measurement range:     0 to 70VDC
Input impedance:    215 K-ohms
Display resolution:     0.1VDC
Isolation:     500VAC, 1minute
Accuracy:     0.5% + 1 digit (±0.35V@50VDC)

Current input:

Measurement method:     Isolated DC current measurement
Sampling rate:     100 Ks/s
Input voltage range:     0 to 100 mVDC
Measurement range:     0 to 100 mVDC
Input impedance:     1000 ohms
Isolation:     500VAC, 1minute
Accuracy:     0.5% + 1 digit (±0.6A@100ADC)
Current shunt range:     1A/60mV to 5000A/60mV
Display resolution:     0.1ADC (shunt < 250A/60mV)
1ADC (shunt > 250A/60mV)
