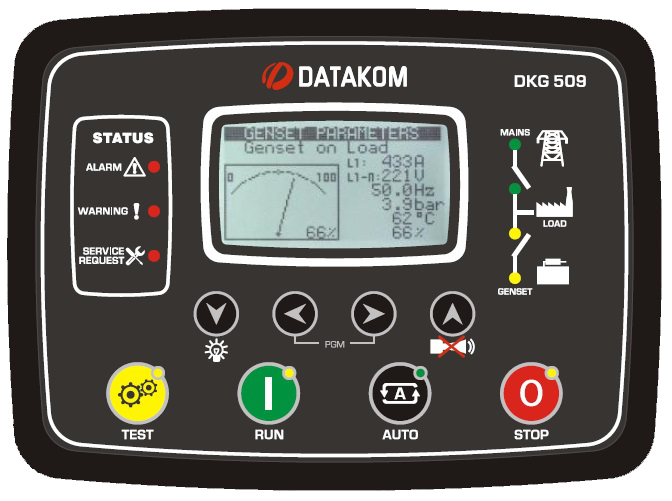

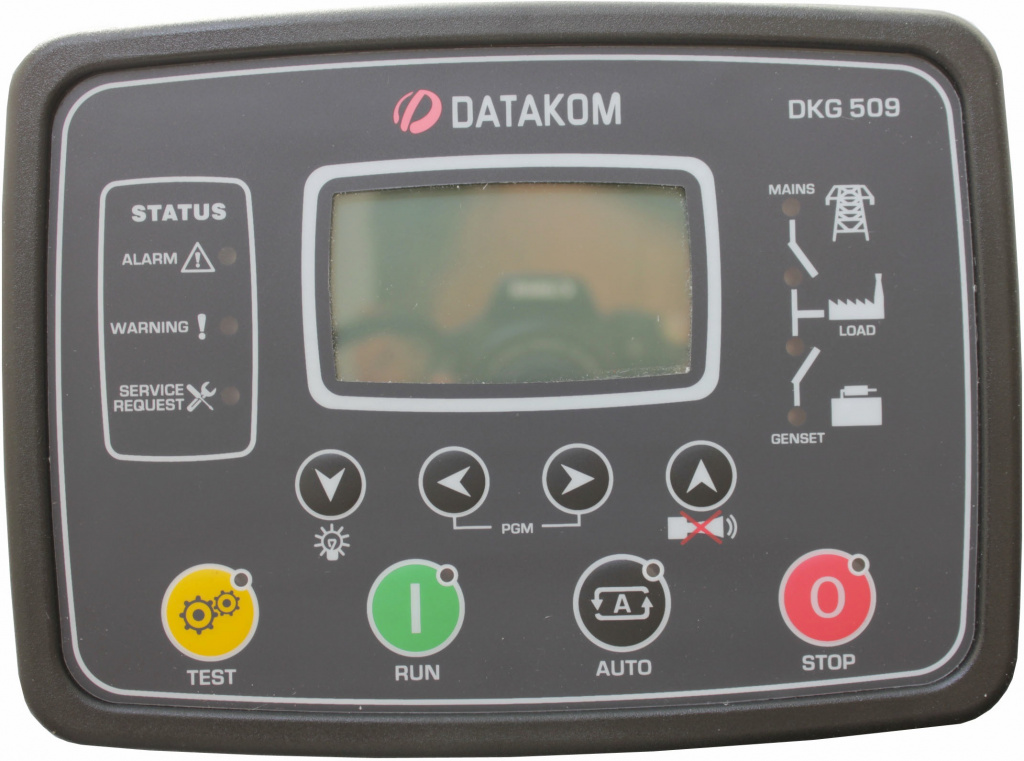

DATAKOM DKG-509 CAN Automatic start mains failure generator controller (AMF) with J1939 interface

Datakom DATAKOM DKG-509 CAN Automatic start mains failure generator controller (AMF) with J1939 interface
Datakom DATAKOM DKG-509 CAN Automatic start mains failure generator controller (AMF) with J1939 interface
Datakom DATAKOM DKG-509 CAN Automatic start mains failure generator controller (AMF) with J1939 interface
Datakom DATAKOM DKG-509 CAN Automatic start mains failure generator controller (AMF) with J1939 interface
(0)
$306.00
pcs.

The DATAKOM DKG-509 is a comprehensive AMF unit for single genset standby or dual genset mutual standby operations. The unit is available with MPU or CANBUS versions.
The panel has an optional internal GSM modem module and is able to initiate modem calls and send SMS messages in fault conditions through either internal or external modems.
The unit provides a comprehensive set of digitally adjustable timers, threshold levels, input and output configurations, operating sequences and engine types. All programs may be modified via front panel pushbuttons, and do not require an external unit.
The WINDOWS based RAINBOW program allows remote monitoring and control.
The unit supports MODBUS protocol enabling communication with PLCs and building management systems. The MODBUS protocol is also supported through GSM and PSTN modems.

FEATURES:
True RMS measurements
ECU connection through J1939 CAN option
J1939 ECU warnings displayed as text
MPU input option
Dual genset mutual standby operation
Event logging with time stamp and measurements
Battery backed-up real time clock
Built in daily / weekly / monthly exerciser
Weekly operation schedule programs
Field adjustable parameters
RS-232 serial port
Free MS-Windows Remote monitoring SW
GSM and PSTN modem support
GSM SMS message sending on fault
MODBUS communications
Multiple language support
Customer logo display capability
16 Amp contactor outputs
1 Amp DC semiconductor outputs
Configurable analogue inputs: 4
Configurable digital inputs: 7
Configurable digital outputs: 2
Total digital outputs: 6
I/O expansion capability
Plug-in connection system

TECHNICAL SPECIFICATIONS:
Alternator voltage: 0 to 300 V-AC Phase to Neutral (0 to 520 V-AC Phase to Phase)
Alternator frequency: 0-100 Hz.
Mains voltage: 0 to 300 V-AC Phase to Neutral (0 to 520 V-AC Phase to Phase)
Mains frequency: 0-100 Hz.
Current input range: 0.1 – 6 A AC
Voltage burden: < 0.1VA per phase
Current burden: < 0.5VA per phase @ 5A AC
Accuracy:
Voltage: 1.0%+1digit
Current: 1.0%+1 digit
Frequency: 0.5%+1 digit
Power(kW,kVAr): 2.0%+12digit
Power factor: 2.0%+1 digit
DC Supply range: 9.0 VDC to 33.0 VDC
Cranking dropouts: survives 0 V for 100ms
Typical stand-by current consumption: 100 mADC.
Maximum current consumption: 250 mADC.
Generator/mains contactor outputs: 16 A @ 250 VAC.
DC outputs: 10A @ 28 VDC. relay outputs.
Charge alternator excitation: min 2W.
Magnetic pickup input:: 0.5 – 30 V-AC.
Magnetic pickup frequency: 10 KHz max.
Current inputs: from current transformers, .../5A. Max load 0.7VA per phase.
Digital inputs: input voltage 0 - 30 VDC. Internally connected to battery positive via 47’000 ohm resistor.
Analog inputs: Resistor input 0 to 5000 ohms connected to the battery negative. Sources 5 mA when
closed to battery negative.
Measurement category: CAT II
Air category: Pollution degree II
Communication port: RS-232. 9600 bauds, no parity, 1 stop bit.
Operating temperature range: -20C to +70C (-4 ºF to +158 ºF)
Storage temperature range: -40C to +80C (-40 ºF to +176 ºF)
Maximum humidity: 95%, non-condensing
Dimensions: 200x148x46mm (WxHxD)
Panel Cut-out dimensions: 176 x 121mm minimum.
Weight: 450 g (approx.)
Case material: High temperature, self extinguishing ABS/PC (UL94-V0)
IP protection: IP65 from front panel, IP30 from the rear


WE DO NOT SHIP THIS PRODUCT TO USA AND CANADA
