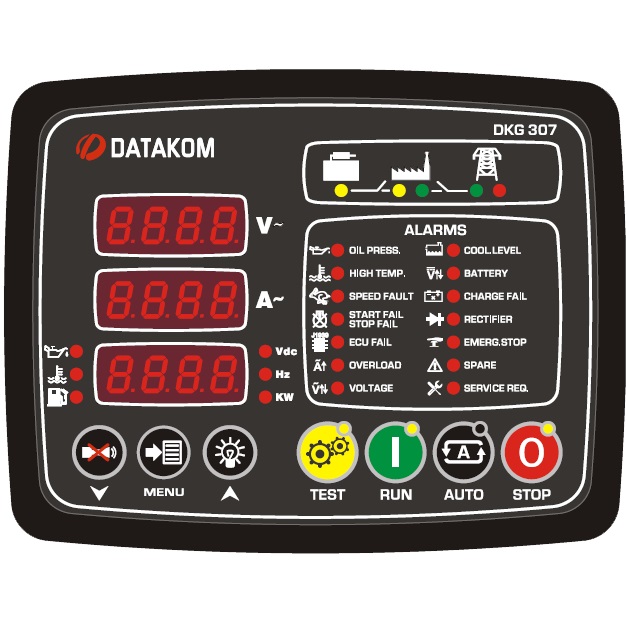

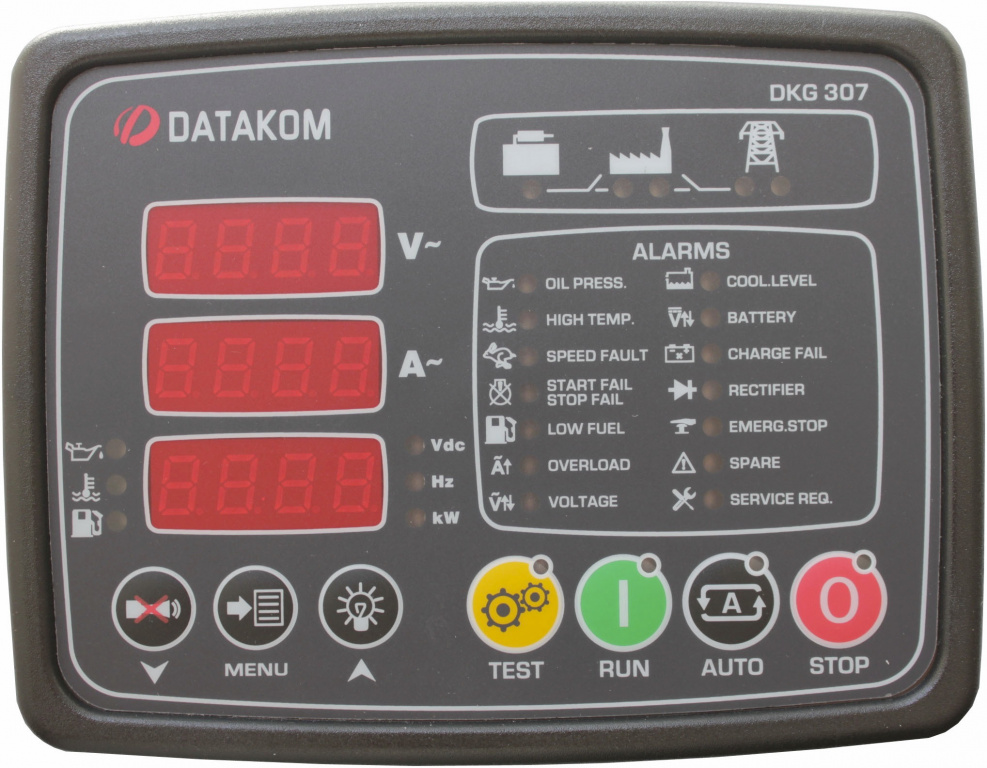

DATAKOM DKG-307 CAN Automatic Mains Failure Controller (AMF)

Datakom DATAKOM DKG-307 CAN Automatic Mains Failure Controller (AMF)
Datakom DATAKOM DKG-307 CAN Automatic Mains Failure Controller (AMF)
Datakom DATAKOM DKG-307 CAN Automatic Mains Failure Controller (AMF)
Datakom DATAKOM DKG-307 CAN Automatic Mains Failure Controller (AMF)
Datakom DATAKOM DKG-307 CAN Automatic Mains Failure Controller (AMF)
(0)
$221.00
pcs.

▼ DATAKOM DKG-307 User manual
▼ DATAKOM DKG-307 Installation manual
▼ DATAKOM DKG-307 Datasheet

The DKG-307-CAN is a comprehensive AMF unit for single genset standby or dual genset mutual standby operations.
The panel is available with MPU or CANBUS versions.
The unit is able to initiate modem calls and send SMS messages in fault conditions through external modems.
The unit provides a comprehensive set of digitally adjustable timers, threshold levels, input and output configurations, operating sequences and engine types. All programs may be modified via front panel pushbuttons, and do not require an external unit.
The WINDOWS based RAINBOW program allows remote monitoring and control.
The unit supports MODBUS protocol enabling communication with PLCs and building management systems. The MODBUS protocol is also supported through GSM and PSTN modems.

MEASUREMENTS:
•    Generator Volts: L1-N, L2-N, L3-N
•    Generator Volts: L1-L2, L2-L3, L3-L1
•    Generator Amps: L1, L2, L3
•    Generator total kW
•    Generator total pf
•    Generator Frequency
•    Engine rpm
•    Mains Volts: L1-N, L2-N, L3-N
•    Mains Volts: L1-L2, L2-L3, L3-L1
•    Battery Voltage
•    Engine Coolant Temperature
•    Engine Oil Pressure
•    Fuel Level
•    Engine Oil Temperature


WE DO NOT SHIP THIS DATAKOM PRODUCT TO USA AND CANADA
