DATAKOM DPR-06 Motor Protection Controller, L-L, asymmetry

Datakom DATAKOM DPR-06 Motor Protection Controller, L-L, asymmetry
Datakom DATAKOM DPR-06 Motor Protection Controller, L-L, asymmetry
Datakom DATAKOM DPR-06 Motor Protection Controller, L-L, asymmetry
(0)
$44.00
pcs.

▼ DATAKOM DPR-06 Datasheet
▼ DATAKOM DPR-06 Installation manual

Unbalanced supply voltages cause often overheating, even damage in electric motors due to high circulating currents caused by asymmetrical voltages.

DPR-06 relay is a three-phase (line to line) voltage asymmetry protection relay designed for electric motor protection.

It offers adjustable asymmetry limit together with adjustable trip and reset delays. The unit has also phase sequence protection, phase failure and phase overvoltage protections.

The asymmetry limit can be adjusted or disabled via trimmers on the front panel of the device.

Delay timers are adjusted through related trimmers.

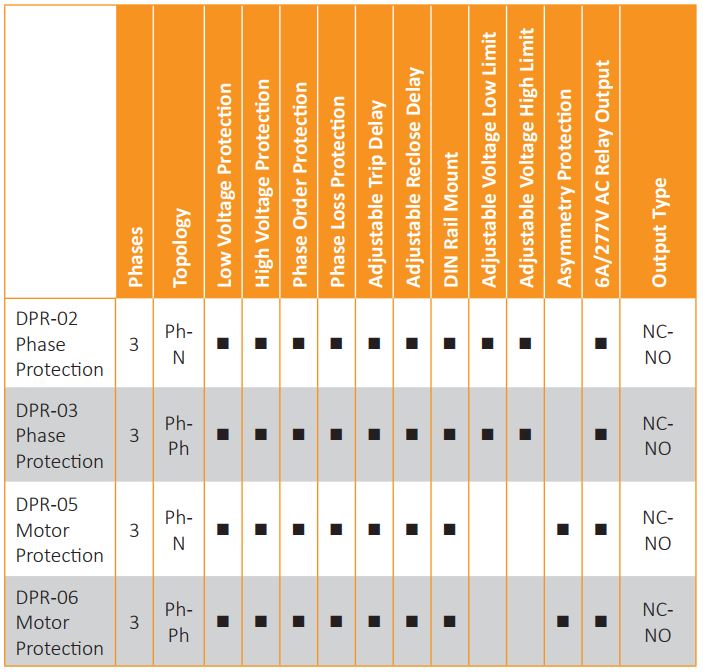

FEATURES:
DIN Rail mounted
Adjustable asymmetry limit
Adjustable TRIP and RESET Delays
Phase sequence protection
Phase failure protection
Insufficient supply protection
Overvoltage protection
6A/277VAC relay output.


WE DO NOT SHIP THIS DATAKOM PRODUCT TO USA AND CANADA
