DKM-406 Transformer center and Network Analyzer

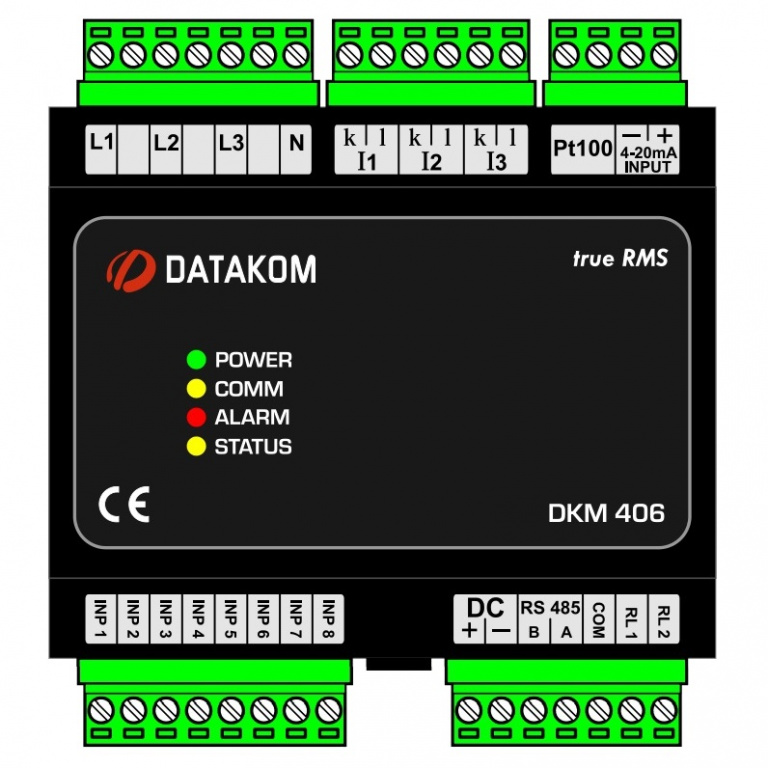

Datakom DKM-406 Transformer center and Network Analyzer
Datakom DKM-406 Transformer center and Network Analyzer
(0)

DCM-406
TRANSFORMER CENTER AND NETWORK ANALYZER
1MB RECORD MEMORY
HARMONIC ANALYSIS
8 DIGITAL INPUTS
2 RELAY OUTPUTS
1 PIECE PT100 INPUT

DKM-406-is a high-precision device that allows measuring, recording and remote monitoring of all fault signals in the substation and AC parameters of the LV main busbar output.

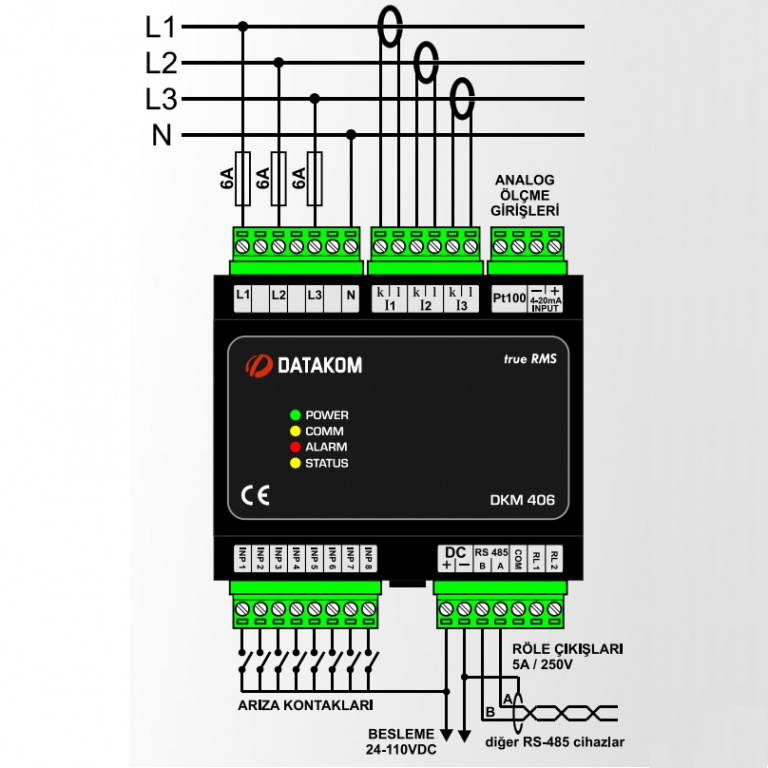

The device is supplied with voltage between 19-150V-DC. The current inputs of the device include internal 5A current transformers. In this way, it is used by connecting it to existing current transformers in series and does not require additional current transformers.


The device has 8 digital inputs. The desired fault or warning signals are connected to these inputs. The functions of the digital inputs can be programmed by selecting them from the list.

The device has 1 PT100 input. This input is placed for measuring transformer oil temperature. The device has 2 relay outputs. The relay is programmed by selecting functions from the list. If desired, relays can be remotely controlled and can be switched on / off. The isolated RS-485 MODBUS RTU communication port is not affected by ground voltage differences and ensures that the measured parameters are transferred securely to the monitoring systems.


The parameter settings of the device are made using the free PC software via the USB port. It saves all electrical parameters to the 1MB memory in the device as often as desired, the records are read via Modbus.


WE DO NOT SHIP THIS PRODUCT TO USA AND CANADA
