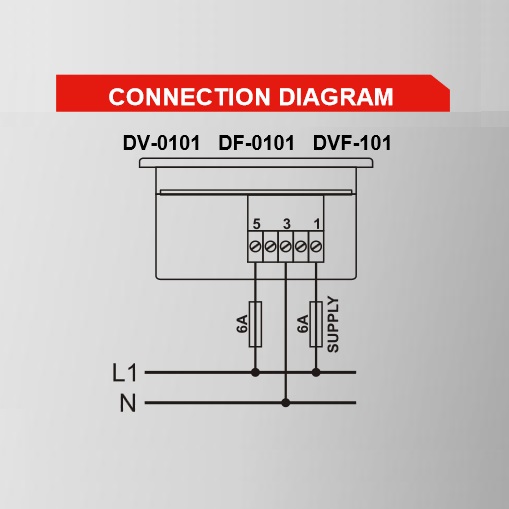

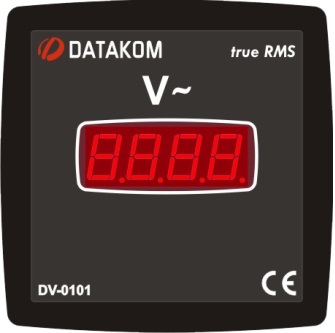

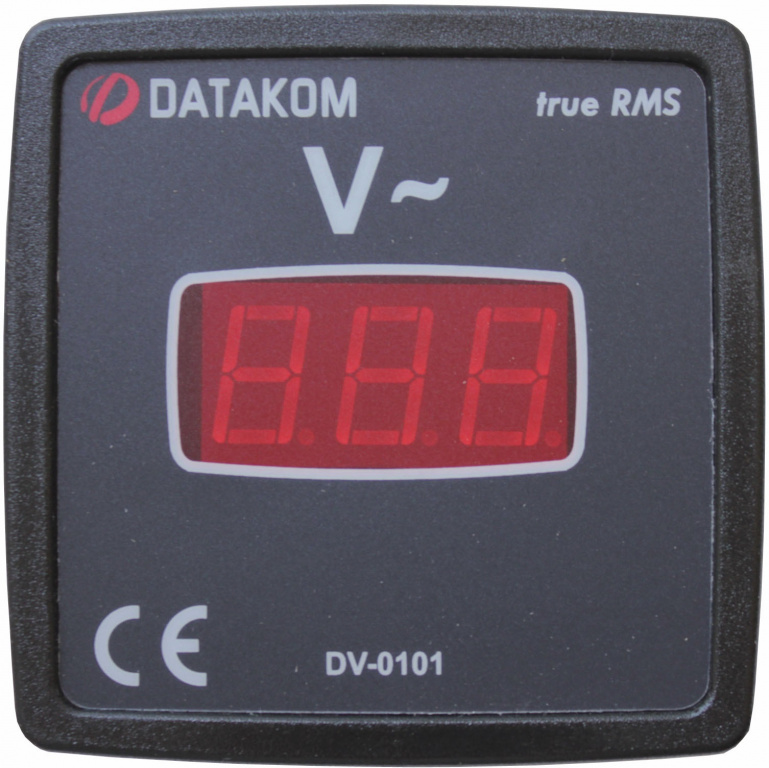

This state-of-the-art panel meter is designed for accurate measurement of the AC RMS voltage in single-phase systems. Although he is mainly used in electrical panels, this device can also be integrated in many other applications. Device have separate inputs for supply and measurement with common neutral point.
TECHNICAL SPECIFICATIONS:
Power Supply Input: 170 - 275VAC
50 - 60Hz nominal (± 10%)
Different AC/DC supply
values available.
Measurement Inputs:
10 - 300 V AC (Phase-Neutral)
20 – 520 V AC (Phase-Phase)
30 - 100 Hz
Accuracy: 0.5% + 1 digit
Power Consumption: < 1.5W
Burden: < 0.1VA per phase
Operating Temperature: -40°C ;+70 °C
Maximum Humidity: 95% non-condensing.
Degree of Protection: IP 54 (Front Panel)
IP 30 (Back panel)
Enclosure:
Non-flammable, ROHS compliant, high
temperature ABS/PC (UL94-V0)
Installation:
Flush mounting with rear retaining brackets
Dimensions:
96x48 models: 102x54x41mm (WxHxD)
72x72 models: 78x78x41mm (WxHxD)
Panel Cutout Dimensions:
96x48 models: 92x44mm
72x72 models: 68x68mm
Weight: 125 gr
EU Directives Conformity:
2006/95/EC (low voltage)
2004/108/EC (EMC)
Norms of reference:
EN 61010 (safety requirements)
EN 61326 (EMC requirements)
