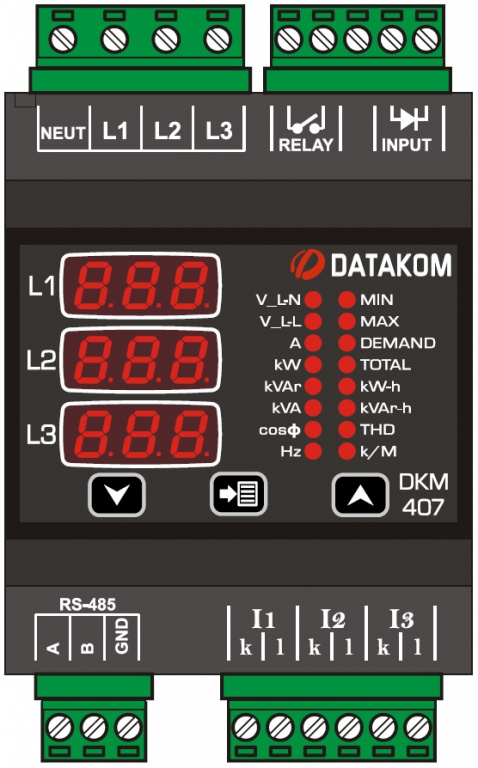

The DKM-407 is a DIN rail mounted precision and low cost unit allowing measurement and remote monitoring of AC parameters in a distribution panel.
Main applications are remote monitoring and energy management.

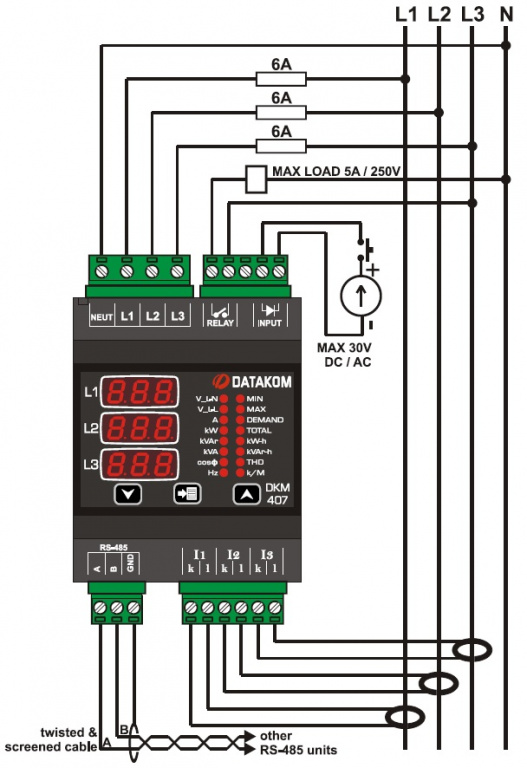

The unit is supplied between L1 and Neutral terminals. Thanks to the supply range of 85-305V, it is not affected by voltage fluctuations and is capable of operating in any network.
The unit features an 32-bit ARM core microcontroller. With a sampling rate of 4096s/s it reaches 0.5% measurement precision.
The unit provides harmonic analysis of all voltage and current channels, up to the 31th component.
The unit provides 1 programmable digital input and 1 programmable relay output. Input/output functions are selected from a list.
The isolated RS-485 MODBUS RTU data port is not affected by ground potential differences and allows safe transfer of data to monitoring and management systems.
Program parameters may be uploaded from a PC. The parameter setup and multiple-unit monitoring programs are free of charge and may be downloaded from the manufacturer’s website.
FEATURES:
● True RMS measurements
● 0.5 % measurement precision
● Total harmonic distortion display
● Demand, Min and Max records
● Fully isolated RS-485 serial port
● MODBUS-RTU communications
● Programmable relay output
● Energy pulse output capability
● Isolated, programmable digital input
● kW and kVAr energy counters
● Hours run counter
● VT ratio for medium voltage applications
● Front panel programming
● Wide operating temperature range
● 2 part connectors
TECHNICAL SPECIFICATIONS:
Supply voltage: 85-305 V AC (L1-NEUTRAL)
Supply frequency: 45-65Hz
Measurement inputs:
Voltage: 10 - 305 V AC (P-N)
20 - 530 V AC (P-P)
Current: 0.2 - 6.00 A AC
Frequency: 30 - 100 Hz
Accuracy:
Voltage: % 0.5 + 1 digit
Current: % 0.5 + 1 digit
Frequency: % 0.5 + 1 digit
Power (kW,kVAr): %1.0 + 2 digit
Cos: %2.0 + 2 digit
Measurement range:
CT range: 5/5A to 5000/5A
VT range: 0.1/1 to 200.0/1
kW range: 0.1 kW to 6.5 MW
Power consumption: < 4 VA
Loading:
Voltage inputs: < 0.1VA per phase
Current inputs: < 1VA per phase
Relay output: 5A @ 250V AC
Digital input:
Active level: 5 - 30V DC or AC
Min pulse: 250ms.
Isolation: 1000V AC, 1 minute
Operating temp. range: -20°C to +70 °C
-4 °F to 158°F
Max. Relative humidity: 95% non condensing
Enclosure: Flame retardent, ROHS compliant,
high temperature ABS/PC (UL94-V0)
Installation: DIN rail mounted
Dimensions: 70x115x66mm (WxHxD)
Weight: 200 g (approximative)
EU Directives:
2006/95/EC (LVD)
2004/108/EC (EMC)
Reference standards:
EN 61010 (safety)
EN 61326 (EMC)
