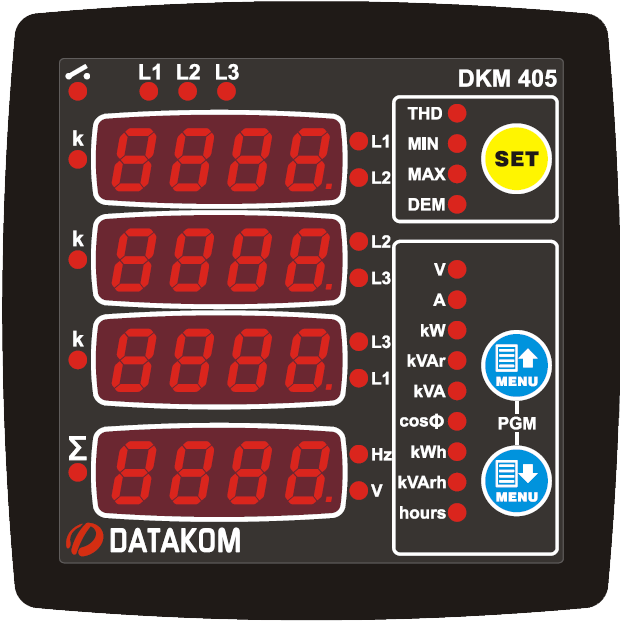

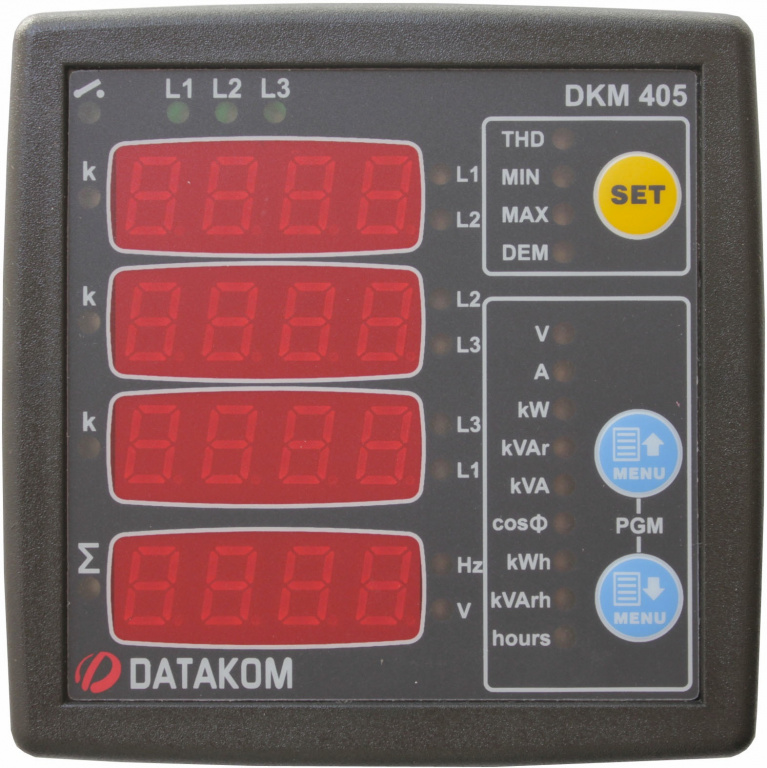

DATAKOM DKM-405 Electric network analyser, 170-275V power supply, 96x96mm, with I/O

Datakom DATAKOM DKM-405 Electric network analyser, 170-275V power supply, 96x96mm, with I/O
Datakom DATAKOM DKM-405 Electric network analyser, 170-275V power supply, 96x96mm, with I/O
Datakom DATAKOM DKM-405 Electric network analyser, 170-275V power supply, 96x96mm, with I/O
(0)
$93.00
pcs.

The DKM-405 is a low cost precision instrument designed to display various AC parameters in a 3-phase distribution panel.
The standard unit is designed for 230/400V network. A different version is available for 120/208V systems.
The harmonic analysis is available for up to 31 harmonics. THD values of both voltage and current inputs are available.
The digital input accepts both AC and DC signals and has programmable functions.
The  relay output is programmable. Relay function is selected through a list.
The unit fits into a standard 92x92mm panel opening.

FEATURES:
• True RMS measurements
• Total harmonic distortion  display
• Max demand display
• Configurable relay output
• Energy pulse output capability
• Optically isolated, configurable digital input
• Active-reactive power counters
• Hour counter
• Voltage transformer ratio for MV applications
• Front panel programming
• Reduced panel depth
• Wide operating temperature range
• Sealed front panel (IP54)
• Plug-in connection system

TECHNICAL SPECIFICATIONS:
Power Supply Input: 170 - 275VAC, 50 - 60Hz nominal (± 10%)
Different AC supply voltages available.
Measurement Input Range:
Voltage inputs: 10 - 300 V AC (L-N)
20 - 520 V AC (L-L)
Current inputs: 0.2 – 5.5 A AC
Frequency: 30 - 100 Hz
Accuracy:
Voltage: 0.5%+1digit
Current: 0.5%+1 digit
Frequency: 0.5%+1 digit
Power(kW,kVAr): 1.0%+2digit
Power factor: 2.0%+2digit
Measurement Range:
CT range: 5/5A to 5000/5A
VT range: 0.1/1 to 200.0/1
kW range: 0.1 kW to 6.5 MW
Power Consumption: < 4 VA
Voltage burden: < 0.1VA per phase
Current burden: < 1VA per phase
Relay Outputs: 5A @ 250VAC
Digital Inputs:
Active level: 5 to 30V-DC or AC
Min pulse duration: 250ms.
Isolation: 1000V AC, 1 minute
Operating Temperature: -20°C to +80°C (-4 to +176 F).
Maximum humidity: 95% non-condensing.
Degree of Protection: IP 54 (Front Panel) , IP 30 (Back panel)
Enclosure: Non-flammable, ROHS compliant, ABS/PC (UL94-V0)
Installation: Flush mounting with rear retaining brackets
Dimensions: 102x102x53mm (WxHxD)
Panel Cutout: 92x92mm
Weight: 200 gr
EU Directives Conformity:
2006/95/EC (low voltage)
2004/108/EC (EMC)
Norms of reference:
EN 61010 (safety requirements)
EN 61326 (EMC requirements)


WE DO NOT SHIP THIS PRODUCT TO USA AND CANADA
