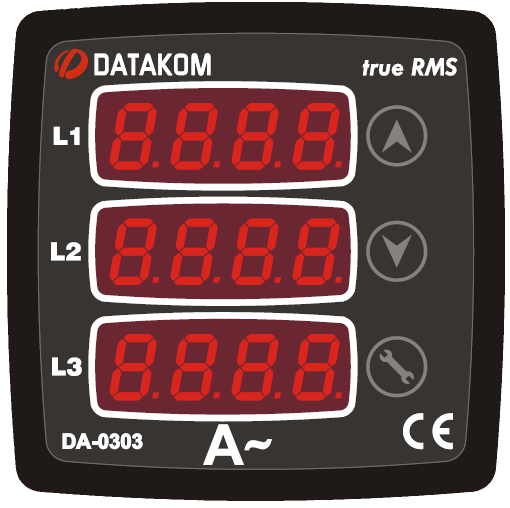

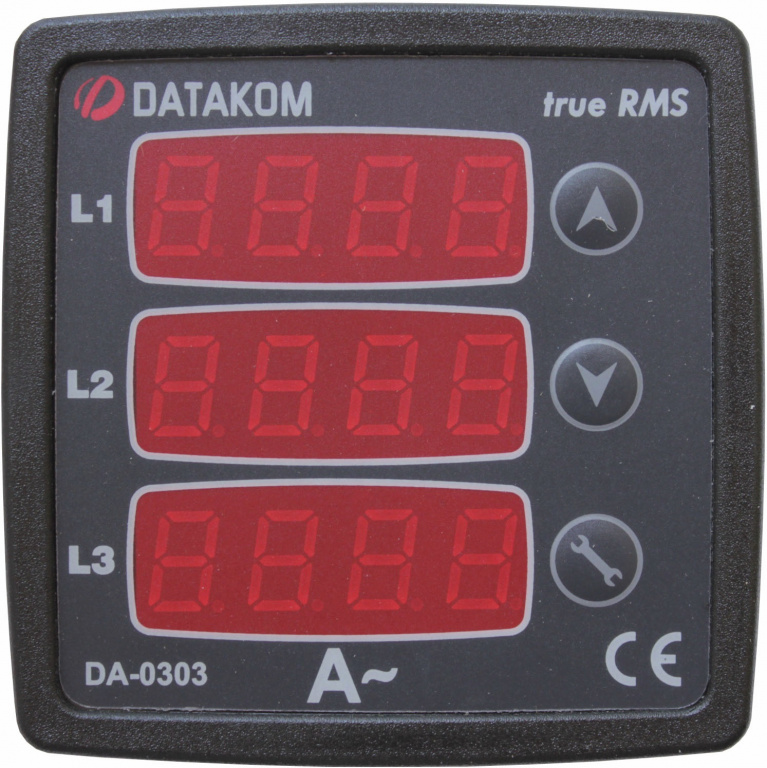

This state-of-the-art panel meters are designed for accurate measurement of the AC RMS current in three-phase systems. Although he is mainly used in electrical panels, this device can also be integrated in many other applications.

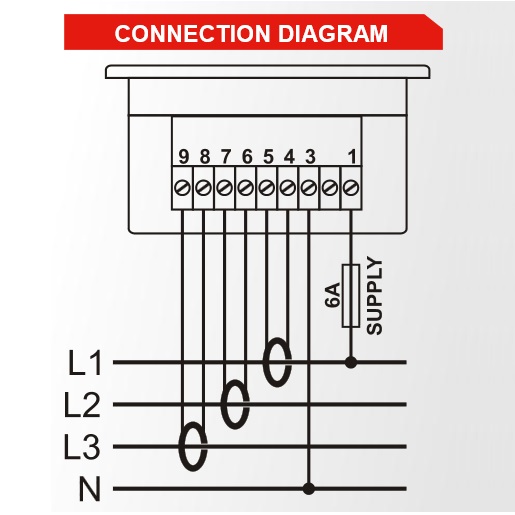

The current transformer ratio can be set between 5/5A and 5000/5A via front panel buttons. Device have separate inputs for supply and measurement.
TECHNICAL SPECIFICATIONS:
Power Supply Input: 170 - 275VAC
50 - 60Hz nominal (± 10%)
Different AC/DC supply
values available.
Measurement Inputs:
0.2 – 5.50 A AC
30 - 100 Hz
Accuracy: 0.5% + 1 digit
Power Consumption: < 1.5W
Burden: < 1VA per phase
Operating Temperature: -40°C ;+70 °C
Maximum Humidity: 95% non-condensing.
Degree of Protection: IP 54 (Front Panel)
IP 30 (Back panel)
Enclosure:
Non-flammable, ROHS compliant, high
temperature ABS/PC (UL94-V0)
Installation:
Flush mounting with rear retaining brackets
Dimensions: 78x78x41mm (WxHxD)
Panel Cutout Dimensions: 68x68mm
Weight: 145 gr
EU Directives Conformity:
2006/95/EC (low voltage)
2004/108/EC (EMC)
Norms of reference:
EN 61010 (safety requirements)
EN 61326 (EMC requirements)
