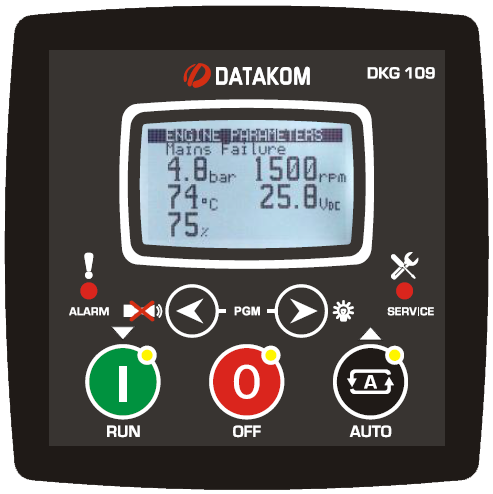

DATAKOM DKG-109 Automatic start mains failure control panel for generators (AMF)

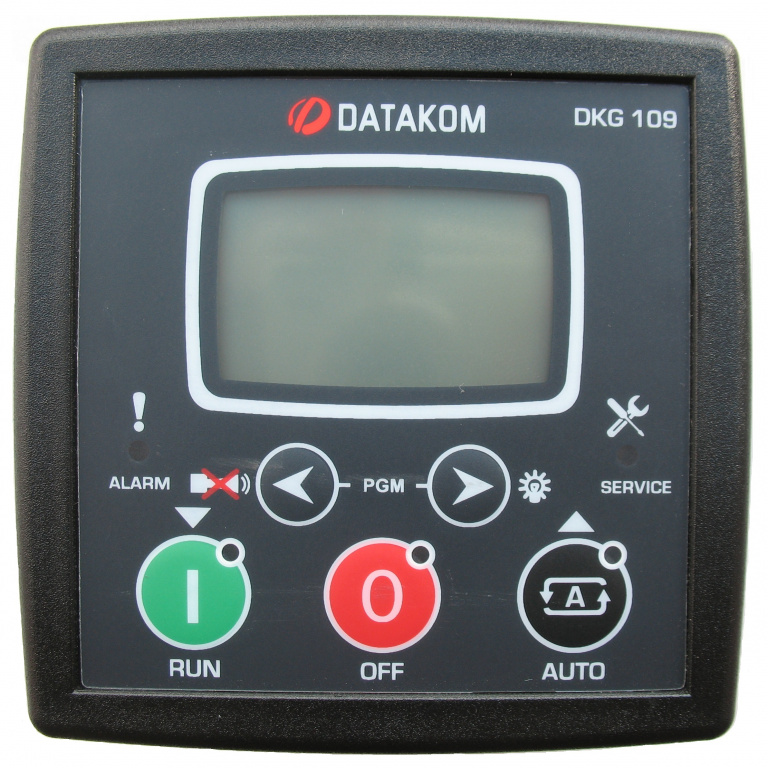

Datakom DATAKOM DKG-109 Automatic start mains failure control panel for generators (AMF)
Datakom DATAKOM DKG-109 Automatic start mains failure control panel for generators (AMF)
Datakom DATAKOM DKG-109 Automatic start mains failure control panel for generators (AMF)
(0)
$193.00
pcs.

The DKG-109 is a comprehensive AMF panel for a single genset standby or dual genset mutual standby operations.

The unit monitors phase voltages and controls the automatic starting, stopping and load transfer of the generating set in case of a mains failure and once the generator is running, it monitors internal protections and external fault inputs. If a fault condition occurs, the unit shuts down the engine automatically and indicates the failure source with the corresponding red led lamp and text.

The DKG-109 provides a comprehensive set of digitally adjustable timers, threshold levels, input and output configurations and operating sequences. All programs may be modified via front panel pushbuttons, and do not require an external unit. The unit is able to send SMS messages in fault conditions.

The unit offers the magnetic pickup input as standard for engine rpm measurement.
It is possible to monitor and control the operation of the system locally or remotely with the WINDOWS based RAINBOW program (external adapter required).

The unit supports MODBUS protocol enabling communication with PLCs and building management systems.

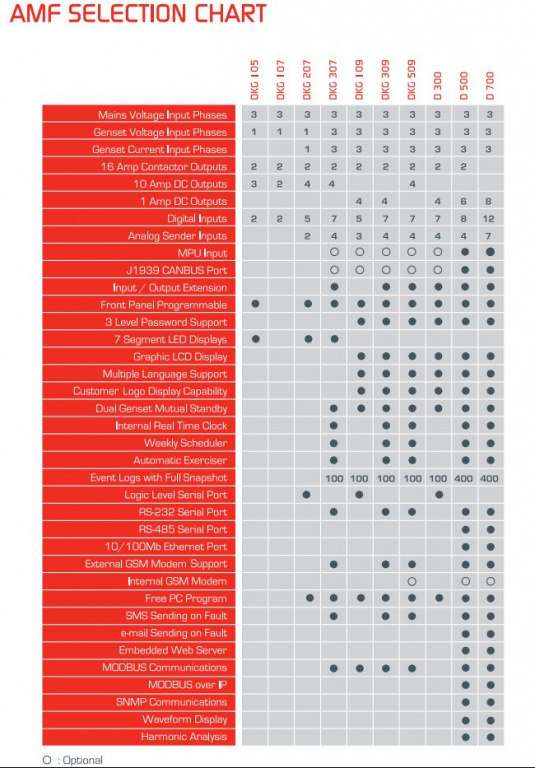

FEATURES:
• 1-3 phase applications
• True RMS measurements
• Automatic mains failure
• ECU control and monitoring through J1939 CAN
• J1939 ECU warnings displayed as text
• Various engine brands and models available
• Gas engine support
• Engine idle speed control
• Generator protection
• Built in alarms and warnings
• Remote Start operation available
• Dual genset mutual standby operation
• Load shedding, dummy load
• Periodic maintenance request monitoring
• Event logging with measurements
• Statistical counters
• Field adjustable parameters
• Logic level serial port
• Firmware downloadable from serial port
• Free MS-Windows Remote monitoring SW:
     -monitoring and control
     -download of parameters
     -upload of parameters
• GSM SMS message sending on fault
• MODBUS communications
• Graphic LCD display (128x64 pixels)
• Triple language support
• Customer logo display capability
• Protected semiconductor digital outputs
• Configurable analogue inputs: 3
• Configurable digital inputs: 5
• Configurable relay outputs: 2
• Total relay outputs: 6
• Survives cranking dropouts
• Sealed front panel
• Plug-in connection system for easy replacement

TECHNICAL SPECIFICATIONS:
Alternator voltage: 0 to 300 V-AC Phase to Neutral (0 to 520 V-AC Phase to Phase)
Alternator frequency: 0-100 Hz.
Mains voltage: 0 to 300 V-AC Phase to Neutral (0 to 520 V-AC Phase to Phase)
Mains frequency: 0-100 Hz.
Current input range: 0.1 – 6 A AC
Voltage burden: < 0.1VA per phase
Current burden: < 0.5VA per phase @ 5A AC
Accuracy:
Voltage: 2.0%+1digit
Current: 2.0%+1 digit
Frequency: 0.5%+1 digit
Power(kW,kVAr): 3.0%+2digit
Power factor: 3.0%+2digit
DC Supply range: 9.0 VDC to 30.0 VDC
Cranking dropouts: survives 0 V for 100ms
Typical stand-by current consumption: 100 mADC.
Maximum current consumption: 200 mADC.
Generator/mains contactor outputs: 16 A @ 250 VAC.
DC outputs: 1A @ 28 VDC. Protected semiconductor outputs.
Charge alternator excitation current: min 150 mADC @ 10 to 30 VDC.
Current inputs: from current transformers, .../5A. Max load 0.7VA per phase.
Digital inputs: input voltage 0 - 30 VDC. Internally connected to battery positive via 4700 ohm resistor.
Analog inputs: Resistor input 0 to 5000 ohms connected to the battery negative. Sources 10 mA when
closed to battery negative.
Measurement category: CAT III
Air category: Pollution degree II
Communication port: logic levels. 9600 bauds, no parity, 1 stop bit.
Operating temperature range: -20°C to +70°C (-4°F to +158°F)
Storage temperature range: -40°C to +80°C (-40°F to +176°F)
Maximum humidity: 95%, non-condensing
Dimensions: 96x96x53mm (WxHxD)
Panel Cut-out dimensions: 92x92mm minimum.
Weight: 200 g (approx.)
Case material: High temperature, self extinguishing ABS/PC (UL94-V0)
IP protection: IP65 from front panel, IP30 from the rear


WE DO NOT SHIP THIS PRODUCT TO USA AND CANADA
