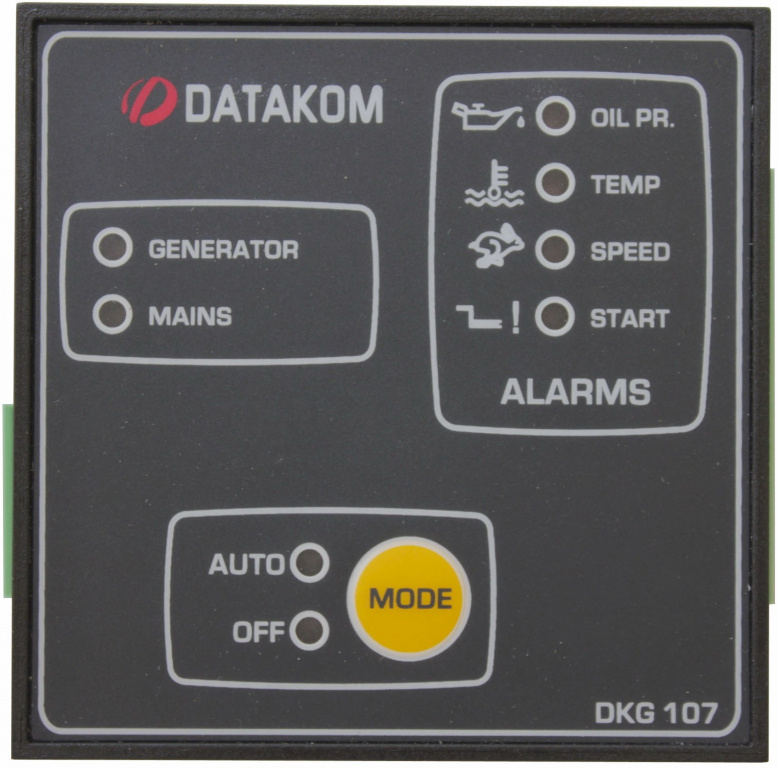

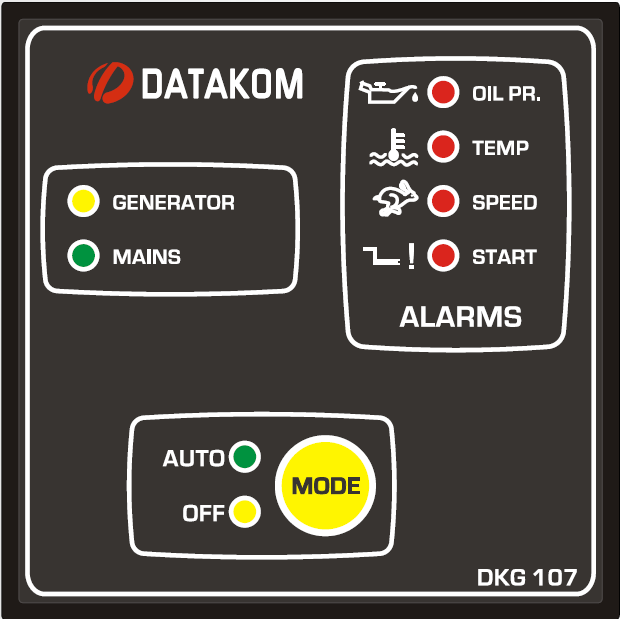

DATAKOM DKG-107 Automatic start mains failure control panel for generators (AMF)

Datakom DATAKOM DKG-107 Automatic start mains failure control panel for generators (AMF)
Datakom DATAKOM DKG-107 Automatic start mains failure control panel for generators (AMF)
Datakom DATAKOM DKG-107 Automatic start mains failure control panel for generators (AMF)
(0)
$81.00
pcs.

▼ DATAKOM DKG-107 UL-CSA Certificate
▼ DATAKOM DKG-107 User manual Espagnol
▼ DATAKOM DKG-107 User manual
▼ DATAKOM DKG-107 Datasheet

DKG-107 AUTOMATIC MAINS FAILURE UNIT

The DKG-107 is a low cost microprocessor based digital unit offering all basic functions needed for the automatic control of a genset including changeover contactors.

The unit fits into a standard 72x72mm panel meter opening and offers a very cost effective and space saving solution for the basic genset control.

In automatic mode, the unit monitors 3 phases of the mains and controls the automatic starting, stopping and load transfer of the generator.

When the engine is running, the unit monitors fault conditions and shuts-down the engine automatically in the occurrence of an alarm.

The alarms are identified by a group of LEDs displaying only the first occurring one.

DKG-107 provides factory adjusted timers. However it has Oil Level Switch and 60Hz options selected by jumper switches and a potentiometer adjusted low voltage limit situated at the bottom of the unit.

FEATURES:
Automatic engine starting and stopping
Automatic mains failure monitoring
Automatic load transfer
Automatic shutdown on fault condition
3 phase mains voltage inputs
1 phase genset voltage input
Survives cranking dropouts
Mains phases voltage limit checking
Generator phase voltage limit checking
Delayed overspeed and underspeed alarm
Lamp test
50/60Hz operation
Selectable Oil pressure/Oil level switch
Sealed front panel
Plug-in connection system for easy replacement
Standard panel dimensions, (72x72mm) Low cost

TECHNICAL SPECIFICATIONS:
Step control: 8 bit microcontroller.
Mains voltage: 300 V-AC max (Ph-N)
Alternator voltage: 300V-AC max (Ph-N)
Alternator frequency: 0-100Hz.
DC Supply range: 9 to 30 V-DC.
Current consumption: 150 mA-DC max. (Relay
outputs open)
Operating temp.: -20°C (-4°F) to 70 °C (158°F).
Storage temp.: -30°C (-22°F) to 80 °C (176°F).
Maximum humidity: 95% non-condensing.
Dimensions: 72 x 72 x 52mm (WxHxD)
Panel cutout dimensions: 68 x 68mm minimum.
Weight: 150 g (approx.)
Installation: Front panel mounted. Retaining steel spring provided.
Case Material: Flame Retardant High Temperature ABS (UL94-V0, 110°C)


WE DO NOT SHIP THIS PRODUCT TO USA AND CANADA
