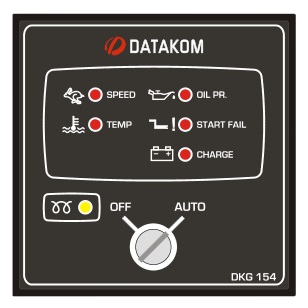

DATAKOM DKG-154 Remote start unit (solid state outputs)

Datakom DATAKOM DKG-154 Remote start unit (solid state outputs)
Datakom DATAKOM DKG-154 Remote start unit (solid state outputs)
(0)
$80.00
pcs.

DKG-154 REMOTE START UNIT

The DATAKOM model DKG-154 is a low cost, microprocessor controlled unit designed to start and stop the genset automatically on request of an external Remote Start signal. It has relay driving solid state outputs enabling it to interface with diesel gensets through power relays.

In the OFF position, the DC supply is removed from the module, thus remote start operation is disabled .

When the engine is running, the unit monitors fault conditions and shuts-down the engine automatically in the occurrence of an alarm. The alarms are identified by a group of LEDs displaying only the first occurring one.

The DKG-154 is also able to control ‘Energize to Stop’ type of engines. The engine type selection is made by a jumper switch.

• Microprocessor controlled
• Remote controlled engine starting and stopping
• Negative pulling semiconductor outputs
• Charge alternator excitation circuit
• High engine temperature protection
• Low oil pressure protection
• Overspeed-underspeed protection
• Automatic shutdown on fault condition
• Cooldown cycle on remote start operation
• User selectable 50/60 Hz operation
• User selectable energize to start/stop operation
• Standard panel dimensions (72x72mm)
• Low cost


WE DO NOT SHIP THIS DATAKOM PRODUCT TO USA AND CANADA
