DATAKOM DKG-605 programming unit & cable

Datakom DATAKOM DKG-605 programming unit & cable
(0)
$50.00
pcs.

▼ DATAKOM DKG-605 Datasheet
▼ DATAKOM DKG-605 User Manual

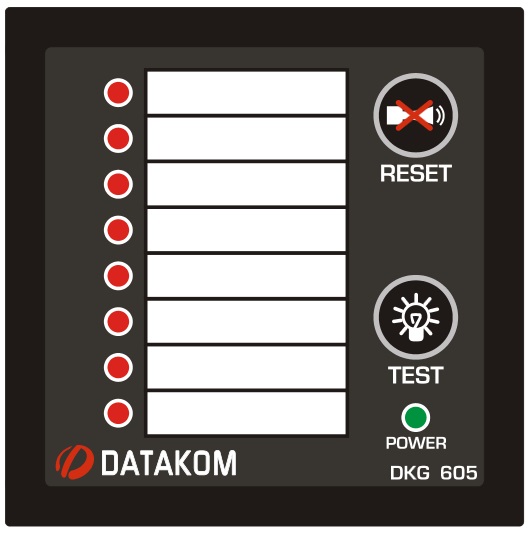

DKG-605 ALARM ANNUNCIATOR UNIT

The DATAKOM model DKG-605 is a compact 8 channel programmable alarm annunciator unit used in generating sets and diesel engines.

The programming is made through the DKG-605-P hand terminal unit.

Features:
Panel mounted,
8 input channels,
2 relay outputs,
8 semiconductor outputs,
44 programmable parameters,
Generator voltage input,
Survives cranking dropouts,
Configurable inputs,
Standard dimensions, 72x72mm,
Plug-in connection system for easy replacement


WE DO NOT SHIP THIS PRODUCT TO USA AND CANADA
